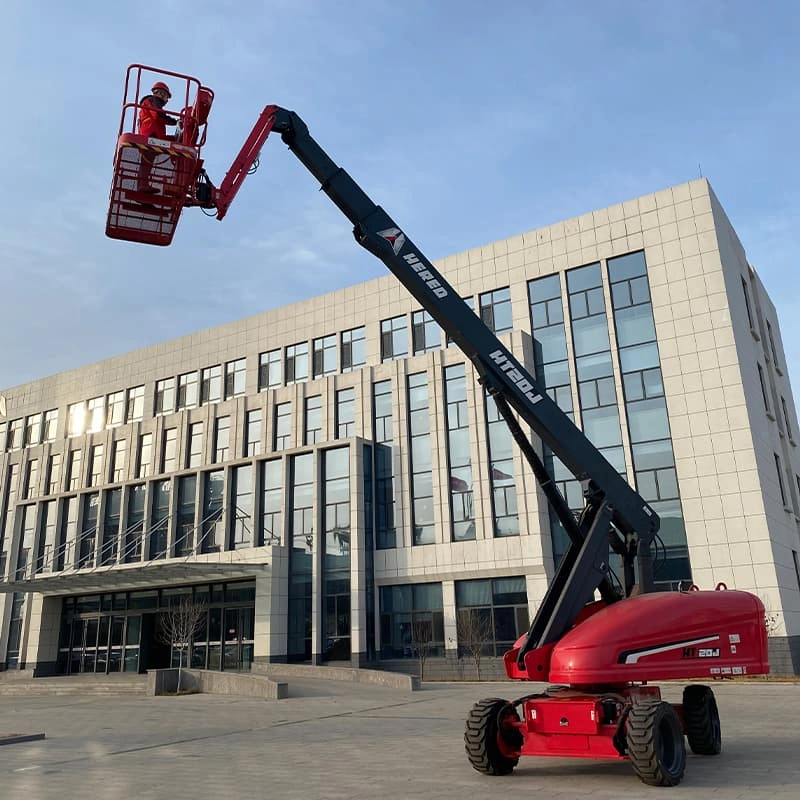

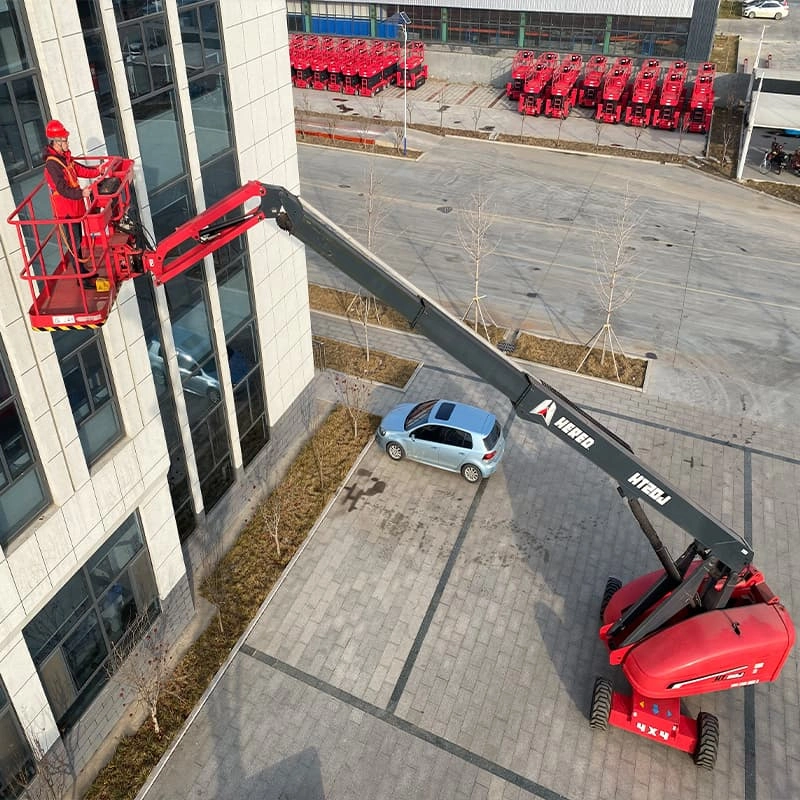

21.8m diesel telescopic boom lift is driven by diesel. Working at heights safely are our priority. These telescopic boom lifts are widely used in ship building and repairing, construction engineering, urban utilities, building maintenance, gardening, airports and harbours, curtain wall engineering, petrochemical industry applications and much more.
While we have a variety of boom lifts(articulating-boom-lift and telescopic-boom-lift ) for sale, we can also provide comprehensive after-sales service, repair and spare parts support.
1. Flexible movement, capable of achieving composite boom movements, with a wide range of operations.
2. Four-wheel drive, floating axle design, better passability.
3. Integrated rotary reducer makes smooth turning, comprehensive protection can adapt to dust environment.
4. High-precision overload sensing system to reduce accidental false alarms and shutdowns.
| MODEL | HT20J |

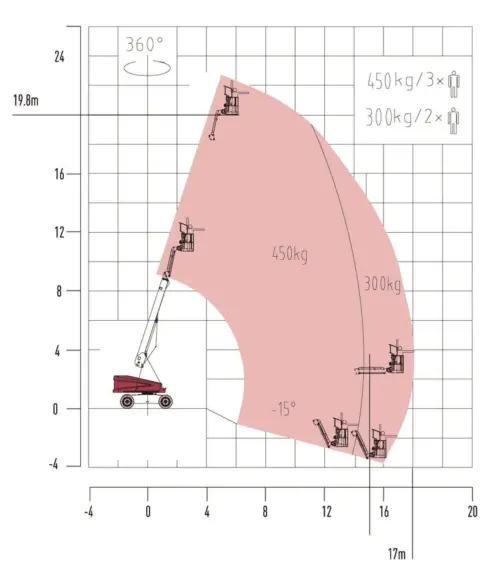

| Max.Working Height | 21.8m |
| Max. Platform Height | 19.8m |
| Max. Horizontal Extension | 16.6m |

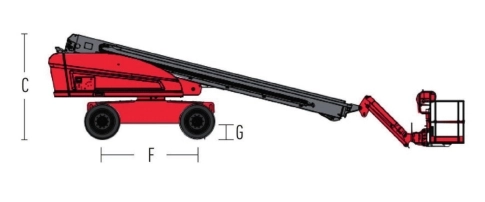

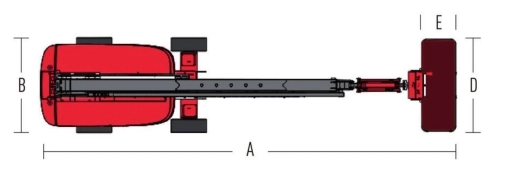

| A- Length (Stowed) | 9.76m |
| B- Width (Stowed) | 2.49m |
| C- Height (Stowed) | 2.77m |
| D- Platform Length | 2.44m |
| E- Platform Width | 0.91m |
| F- Wheelbase | 2.5m |
| Wheel track | 2.1m |
| G- Ground Clearance | 0.31m |
| PERFORMANCE | |
| Platform Capacity(unrestricted/restricted) | 300kg/450kg |
| Max.Drive Speed (Stowed) | 4.8km/h |
| Gradeability | 45% |
| Turning Radius(In.) | 2.42m |
| Turning Radius(Out.) | 5.57m |
| Turntable Rotation | 360°Continuous |
| Platform Rotation | -80°to 80° |
| Vertical JIB rotation | -65°to 78° |
| Tilt Rating | 5° |
| Operating Wind Speed | 12.5m/s |
| Tail Swing | 1.42m |
| POWER | |
| Engine | Kubota V2403 |
| Fuel Tank Capacity | 130L |
| Control Voltage | 12V |
| Hydraulic Tank Capacity | 170L |
| Drive Method | FWD |
| Turn Method | Front |
| Tires | 36X14-20 |
| WEIGHT | |
| Weight | 12100kg |
